Basic parameters
Product Name

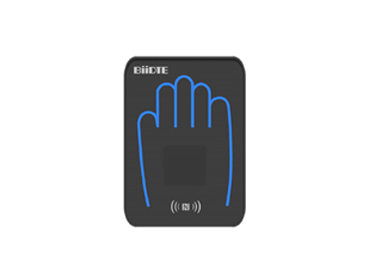

PalmVein Sensor Kit
Model Name
standard
Model Code
PVSK06
Time To Market
May 2022
Exterior Dimensions
125*95*28（LxWxH mm）
Network connection
wired network,WiFi
Language
Chinese
Prompt Mode
voice,lighting
Authentication Mode
palm vein biometrics ,IC
User Capacity
1:N made :max 2000 persons；
1:1made:max 50000 persons。
1:1made:max 50000 persons。
Algorithm Version
HandID
FAR
(false accept rate)
(false accept rate)
<0.00001%
Identification
duration
duration
t＜0.8s（1:N, N=2000, offline mode)
Smart Card
Reader
Reader
operating frequency:13.56MHz
Card type:MF1 S50, MF1 S70,FM11RF08,NTAG203,NTAG213,FM1208
Card type:MF1 S50, MF1 S70,FM11RF08,NTAG203,NTAG213,FM1208
Output Signal
RS485,Wiegand26/34,switching signal
Communication Method
USB2.0, TTL Serial Port, Swithing Signal
Working Enviroment
Indoor
Temperature range
-20℃～+60℃
