Basic parameters
Product Name

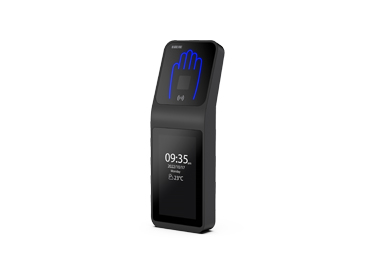

Intelligent access control
Model Name
standard
Model Code
PSD-970
Time To Market
November 2022
Exterior Dimensions
125*38*360（LxWxH mm）
Display
capacitive touch screen 7.0",
1024x600 pixel
Shell material
aluminium alloy
Appearance Color
Dark Gray
Electricity Supply Method
POE,DC12V
Network connection
wired network,WiFi
Language
Chinese*
Prompt Mode
voice,display
Identification Mode
palm vein biometrics ,IC,password，2FA
User Capacity
1:N made :max 2000 persons；
1:1made:max 50000 persons。
1:1made:max 50000 persons。
Algorithm Version
HandID
FAR
(false accept rate)
(false accept rate)
<0.00001%
Identification
duration
duration
t＜0.8s（1:N, N=2000, offline mode)
Smart Card
Reader
Reader
operating frequency:13.56MHz
Card type:MF1 S50, MF1 S70,FM11RF08,NTAG203,NTAG213,FM1208
Card type:MF1 S50, MF1 S70,FM11RF08,NTAG203,NTAG213,FM1208
Output Signal
RS485,Wiegand26/34,switching signal
Temperature range
-20℃～+70℃
