Basic parameters
Product Name

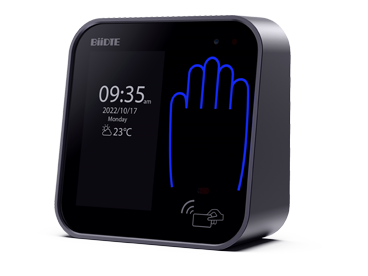

Intelligent access control
Model Name
standard
Model Code
PSD-930
Time To Market
June 2022
Exterior Dimensions
92*24*92（LxWxH mm）
Display
capacitive touch screen 3.0",
480x854 pixel
Shell material
aluminium alloy
Appearance Color
silver gray
Electricity Supply Method
POE,DC12V
Network connection
wired network,WiFi
Language
Chinese,Japanese,English
Prompt Mode
voice,lighting,display
Weight
500g
Authentication Mode
palm vein biometrics ,IC,password,2FA
User Capacity
1:N made :max 2000 persons；
1:1made:max 50000 persons。
1:1made:max 50000 persons。
Algorithm Version
HandID
FAR
(false accept rate)
(false accept rate)
<0.00001%
Identification
duration
duration
t＜0.8s（1:N, N=2000, offline mode)
Smart Card
Reader
Reader
operating frequency:13.56MHz
Card type:MF1 S50, MF1 S70,FM11RF08,NTAG203,NTAG213,FM1208
Card type:MF1 S50, MF1 S70,FM11RF08,NTAG203,NTAG213,FM1208
Output Signal
RS485,Wiegand26/34,switching signal
Temperature range
-20℃～+70℃
